UD9001

KEY SPECS

PRICE INCLUDES BUILDING APPROVAL AND DEVELOPMENT APPROVAL DRAWINGS

1156.50m2 (TOTAL GFA) - 7 x 2 Bedroom Units
                                              2 x 3 Bedroom Units

This unit development requires a minimum site area of 933m2.

DESCRIPTION

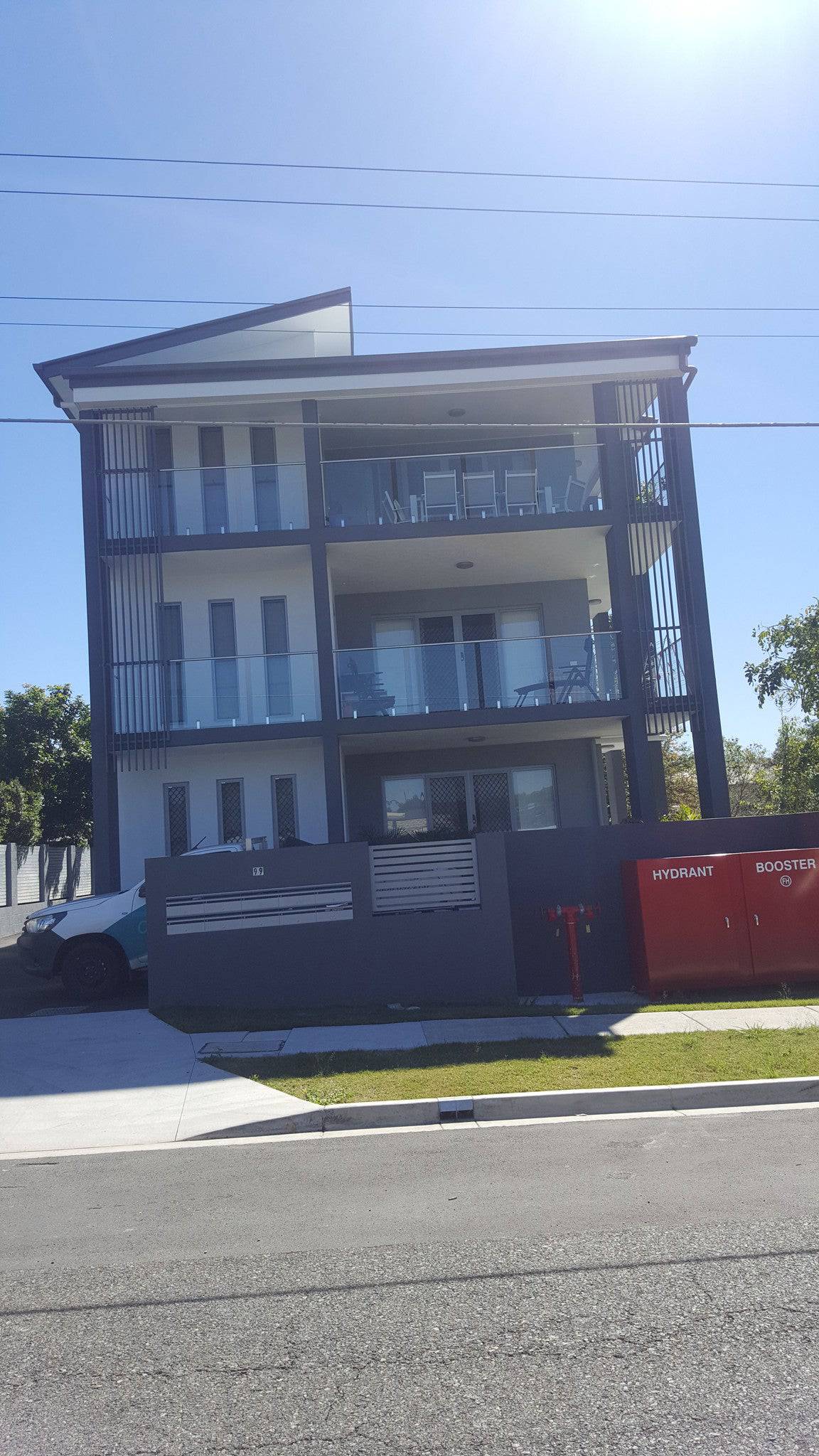

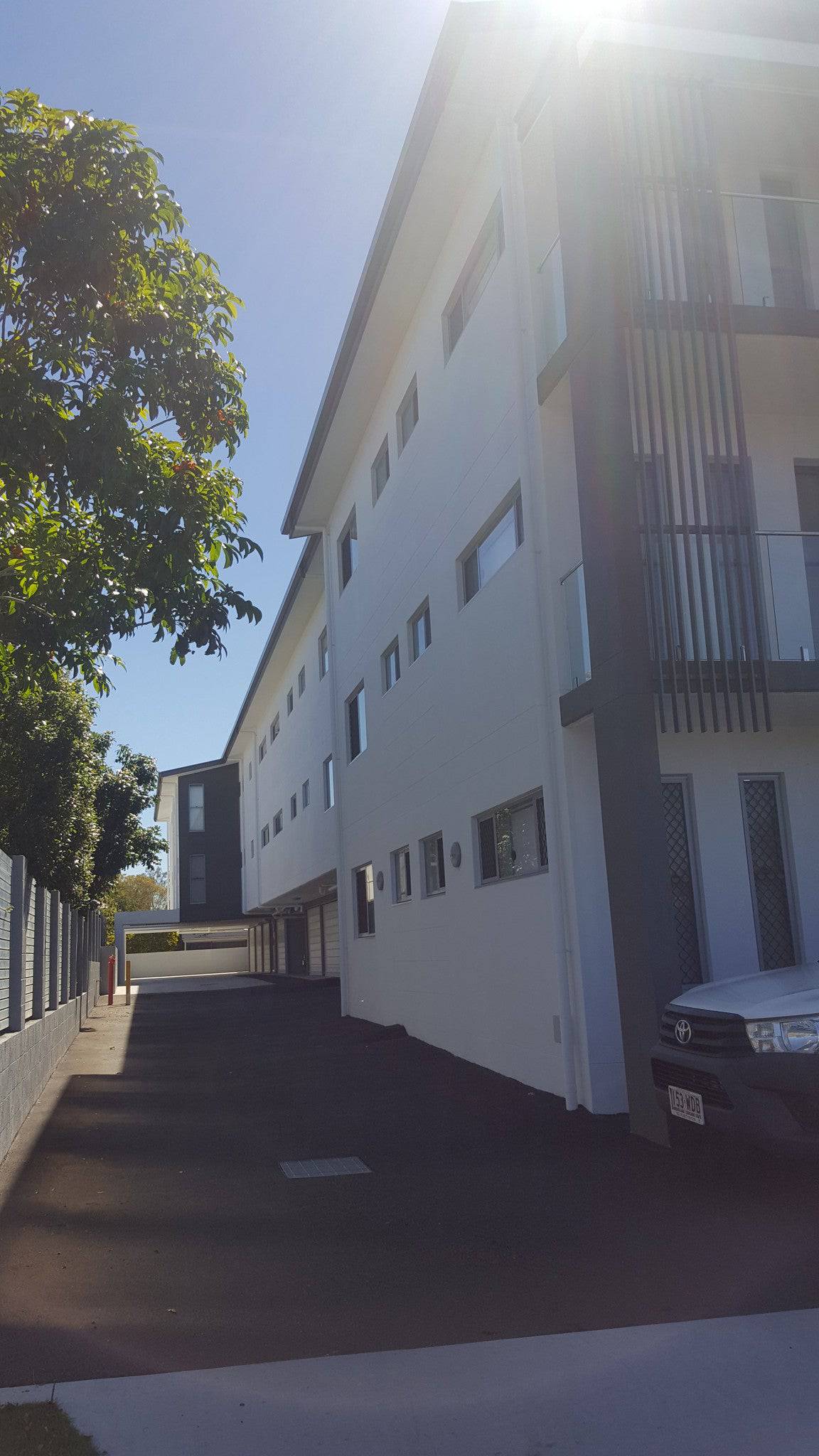

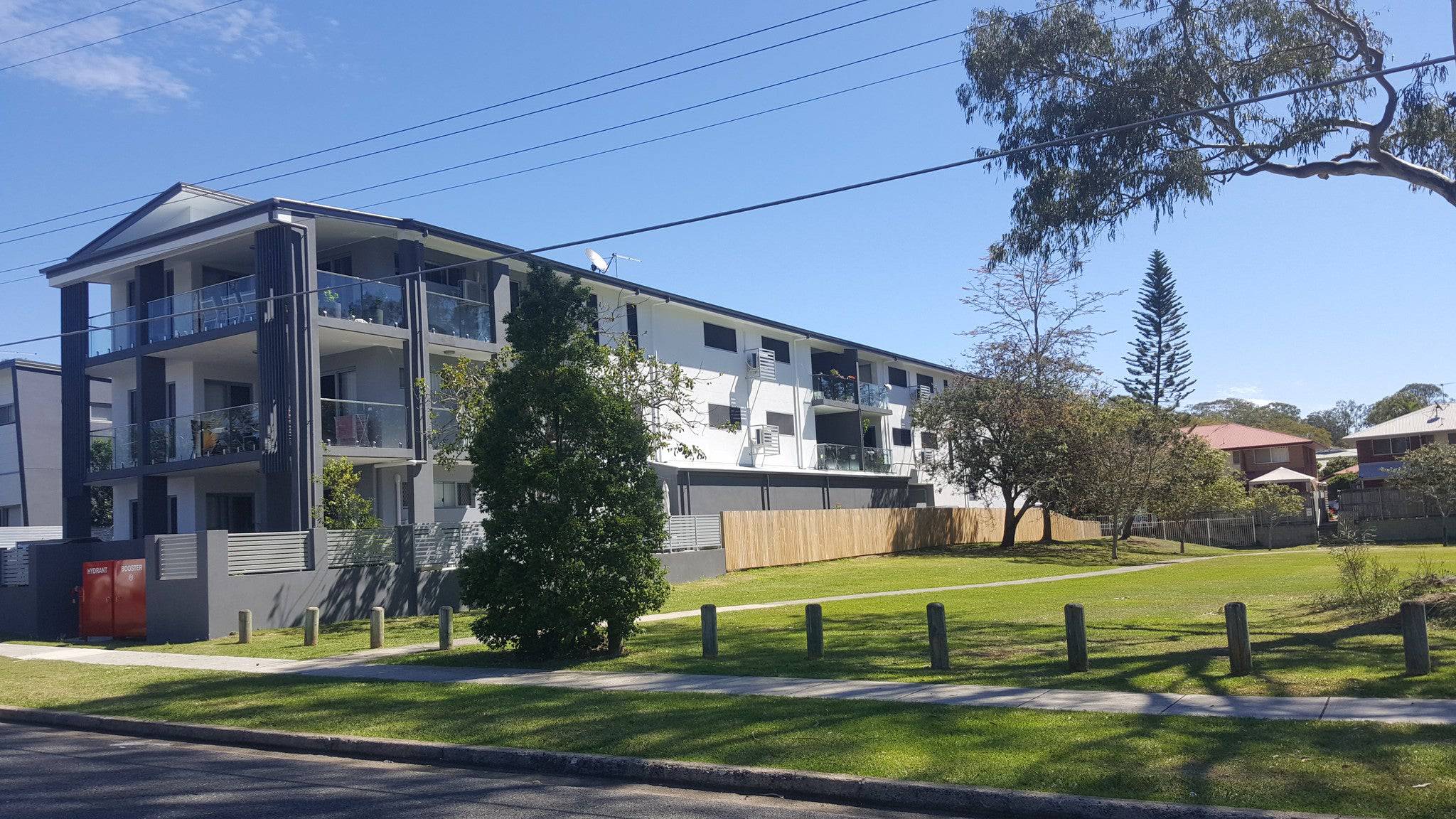

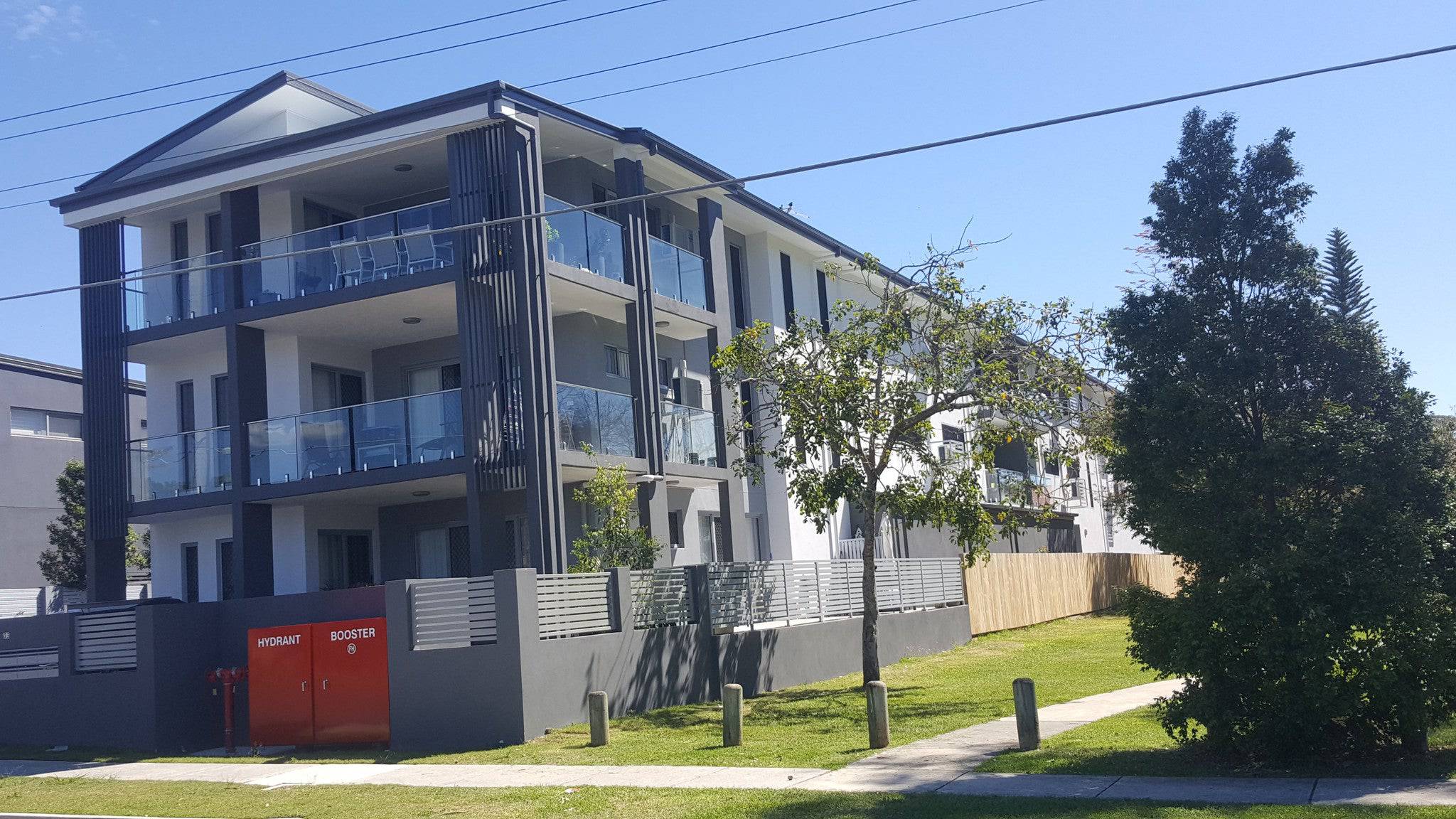

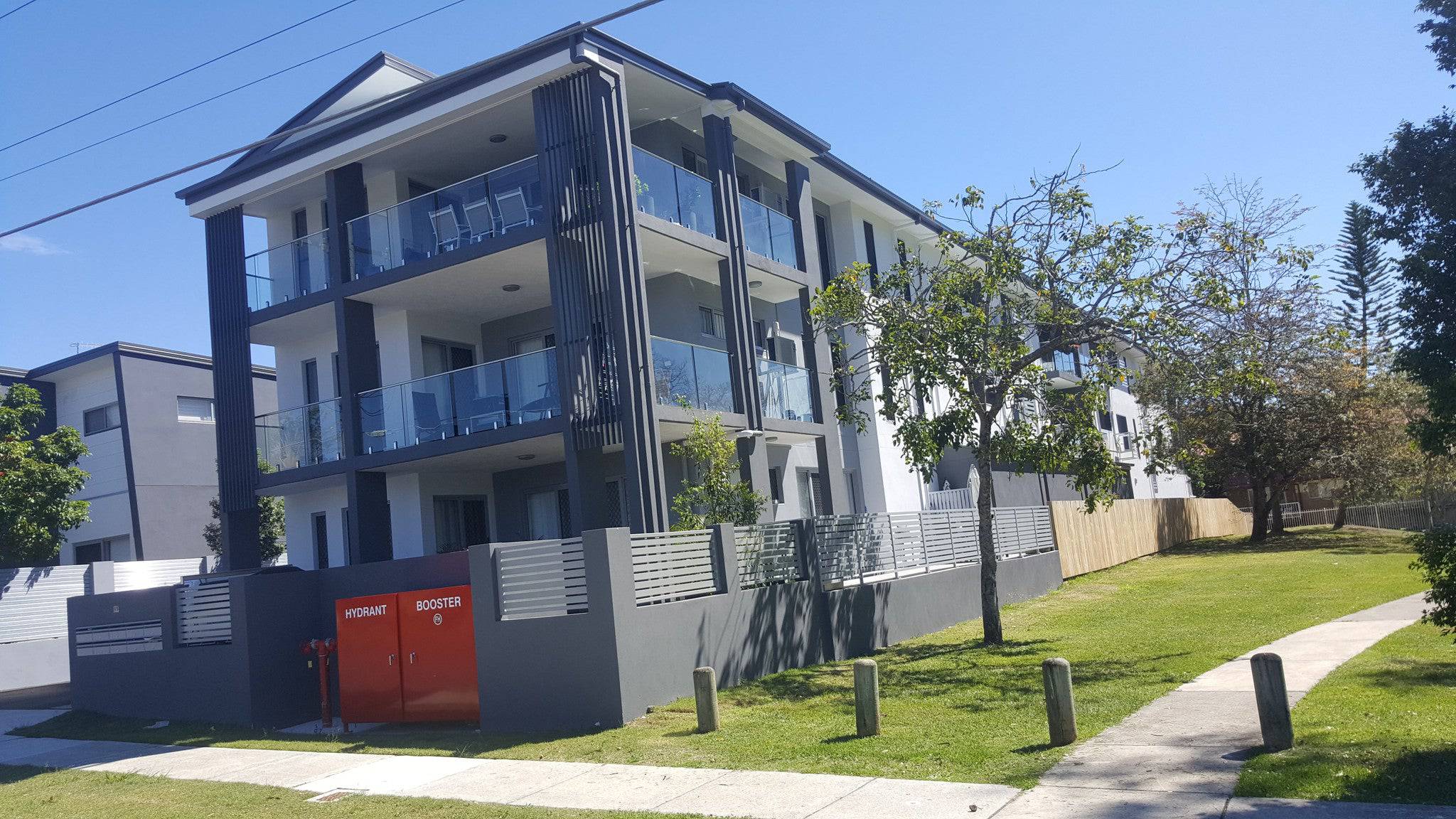

This three storey unit complex includes 9 private units (7 with two bedrooms and 2 with three bedrooms). Each unit has a single undercover car space and there are a total of three visitor car parks. Unit 1 can be found on the ground floor and features two bedrooms, two bathrooms (private ensuite to bed 1), an open plan kitchen, dining and living room, small european laundry and a good sized private outdoor patio area.  Units 2 - 5 are on the first floor (accessed by internal stairs). Units 2, 3 and 4 feature two bedrooms each, two bathrooms (bed 1 with a private ensuite), an open plan kitchen, dining and living area and a small european laundry. Each unit also has a private balcony. Unit 5 features three bedrooms with built in wardrobes, two bathrooms (bed 1 has a private ensuite), a european laundry and a large open plan kitchen, dining and living room which flows out to an outside balcony. The second floor of the unit complex is comprised of units 6-9 which are identical to the units on the first floor.

To modify this floor plan please contact us for a FREE quote. Click Here.

Floor Plan

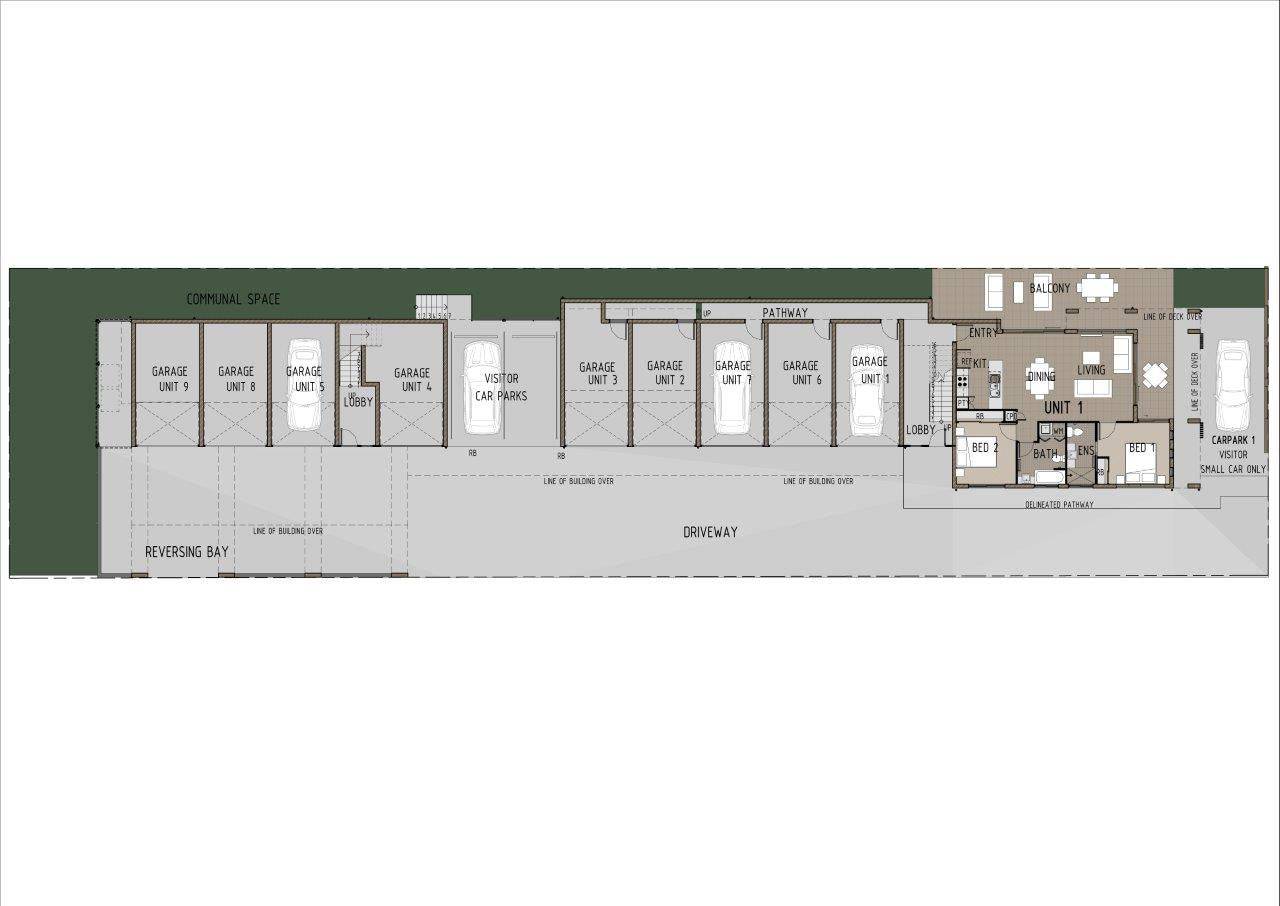

Ground Floor

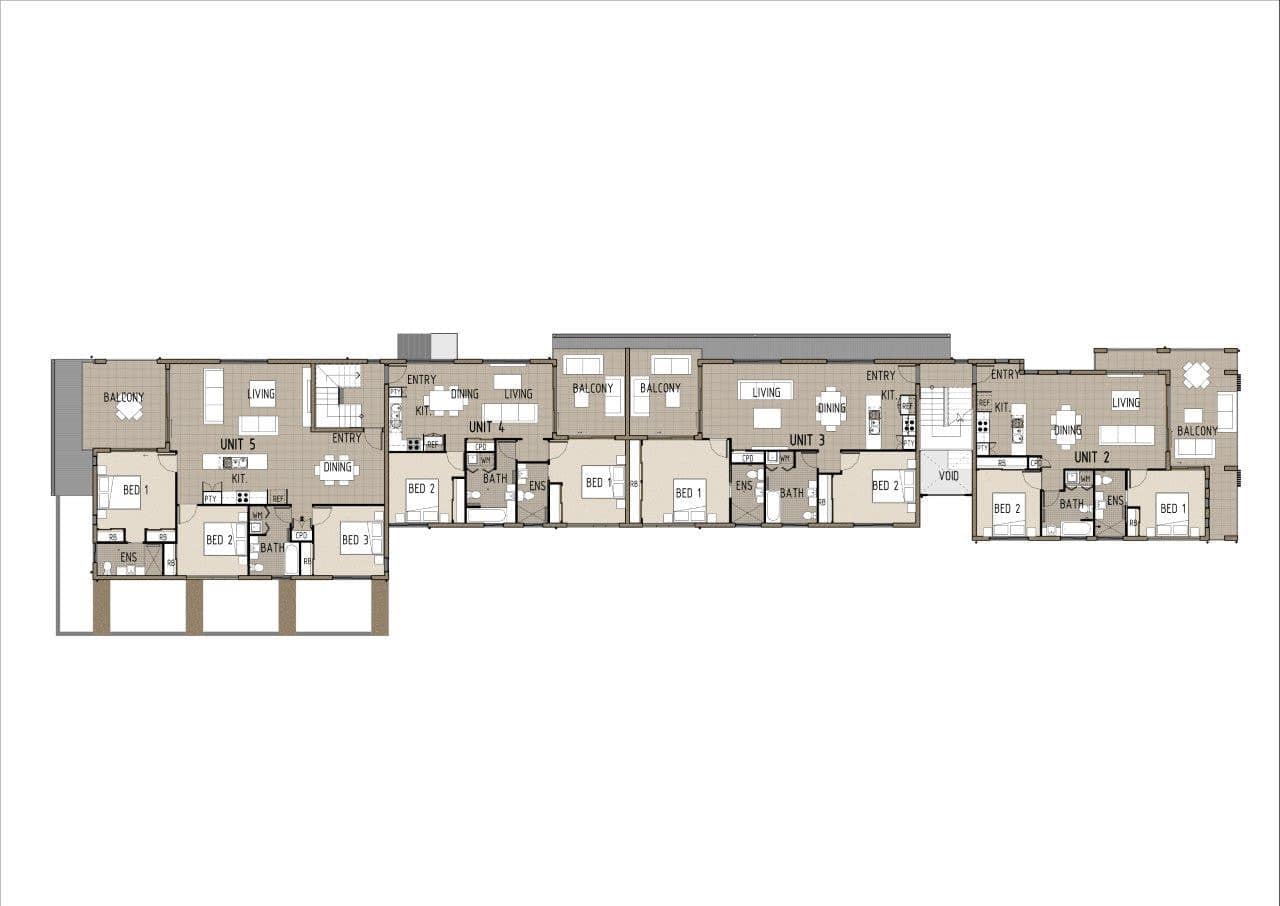

First floor

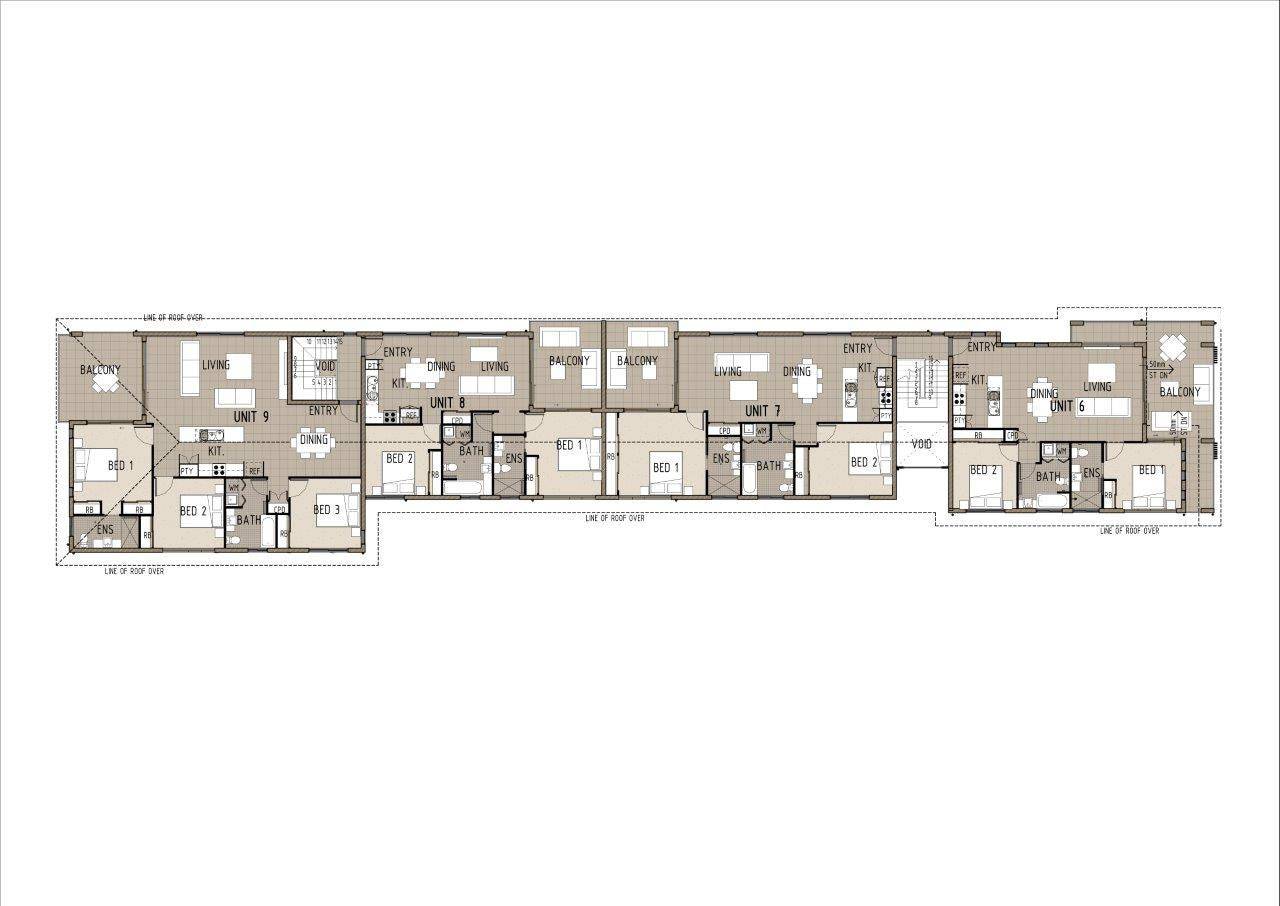

Second floor

All Our Full Working Drawings Sets include the following:

• Floor plans
• Site plan (if we have your site survey)
• Elevations
• Sections
• Roof plan
• Area legend
• Door and Window schedule
• 3D perspectives (black and white)

Additional services we can offer include*:

• Wet area details
• Construction details
• Shadow diagrams
• Colour floor plans, elevations and perspectives
• Modifications to designs
• Electrical Plan
• Floor finishes plan
• Slab layout plan

*Additional services will be charged at a rate of $132 per hour.

Due to the volatile nature of the Australian construction industry and lack of building materials at the moment, AHDG are unable to provide accurate building prices at this stage.

AHDG recommends purchasing our $99 Dimensioned Floor Plan + Elevations drawings and then contact local builders for pricing. This will be more economical than purchasing full working drawings. Please note, not all builders will be able to provide a quote with the $99 plans. They may require full working drawings.
